Geberit HDPE Robust resistance no matter what
The professionals for the dirty work
Geberit HDPE discharge pipes are suitable for a multitude of application ranges in building drainage, roof drainage, in industry, in commercial or laboratory facilities, for placement in the ground, in concrete or in bridge construction.
- Resistant to around 95% of all standard alkalis, acids and chemicals.
- The pipes and fittings withstand shocks, drops, impacts or short-term pressure without breakage or permanent deformation
Geberit HDPE applications
- Building drainage
- Conventional roof drainage system
- Syphonic roof drainage system
- Land drainage system

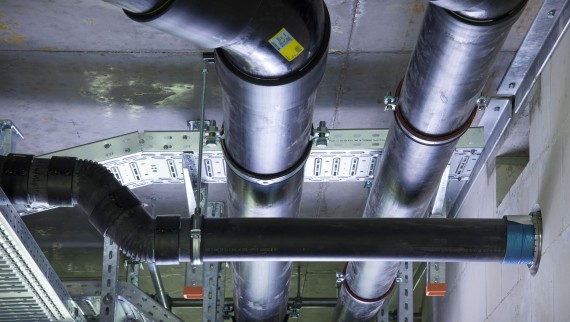

- Industry

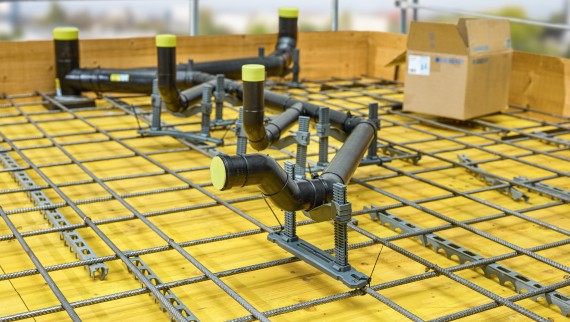

Geberit HDPE is suitable for embedding in concrete.
Many good reasons for Geberit HDPE
Please select an info point in the picture
Geberit HDPE assortment
Dimensions

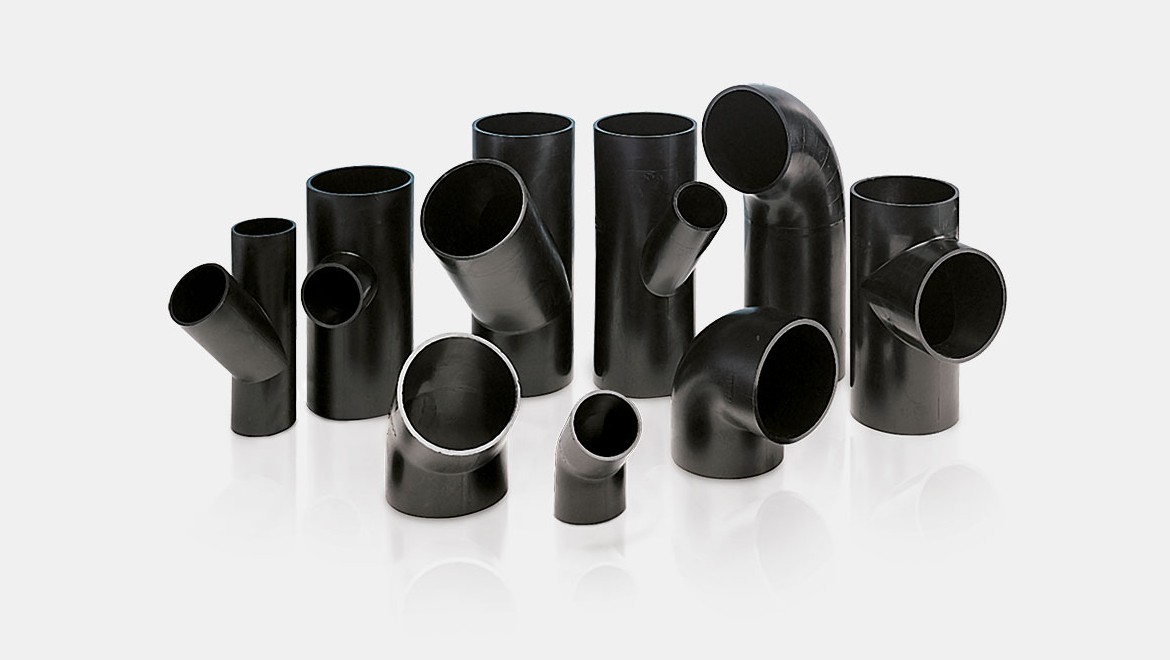

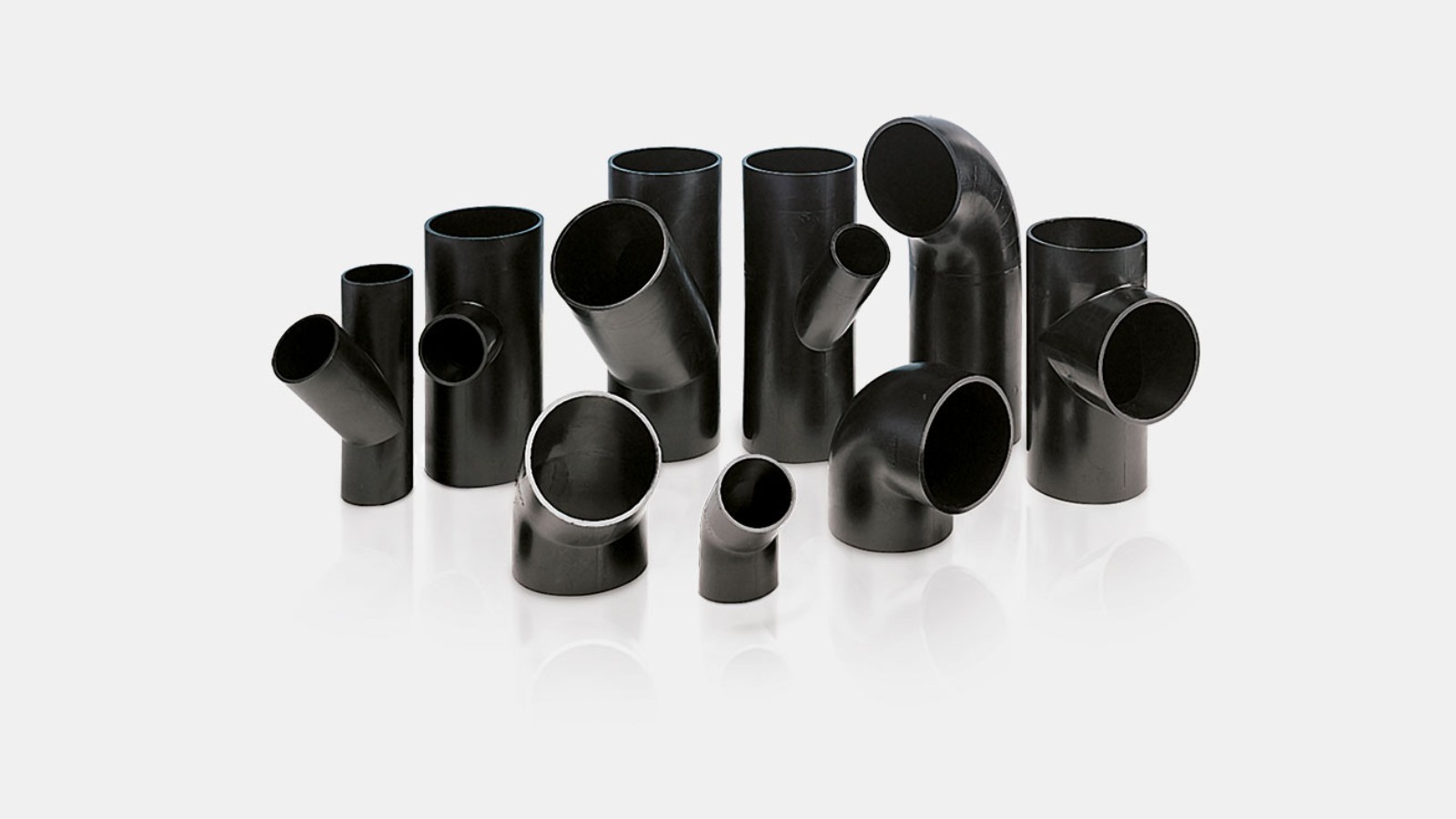

Fittings
Accessories
Technical data
Dimensions
| Nominal width (DN) | Dimension d x s (mm) |
|---|---|
| 30 | 32 x 3 |
| 40 | 40 x 3 |
| 50 | 50 x 3 |
| 56 | 56 x 3 |
| 60 | 63 x 3 |
| 70 | 75 x 3 |
| 90 | 90 x 3.5 |
| 100 | 110 x 4.3 |
| 125 | 125 x 4.9 |
| 150 | 160 x 6.2 |
| 200 | 200 x 6.2 |
| 200 | 200 x 7.7 |
| 250 | 250 x 7.8 |
| 250 | 250 x 9.7 |
| 300 | 315 x 9.8 |
| 300 | 315 x 12.2 |
